As the cement industry is a resource-intensive industry that uses enormous quantities of natural resources as raw materials and fuels. While the known fossil fuels, and more importantly coal, which is the primary fuel for the Indian cement industry are fast depleting, it is imperative to look for alternatives.
AVAILABLE HAZARDOUS WASTE WHICH CAN BE USED AS PARTIAL FUEL IN CEMENT KILN
Organic residue from Pharmaceuticals and Pesticide industry
Spent solvent
Sludge from petrochemical/oil refinery
Waste Oil
Paint sludge
Spent Pot Lining from Aluminium Industry
Spent Carbon

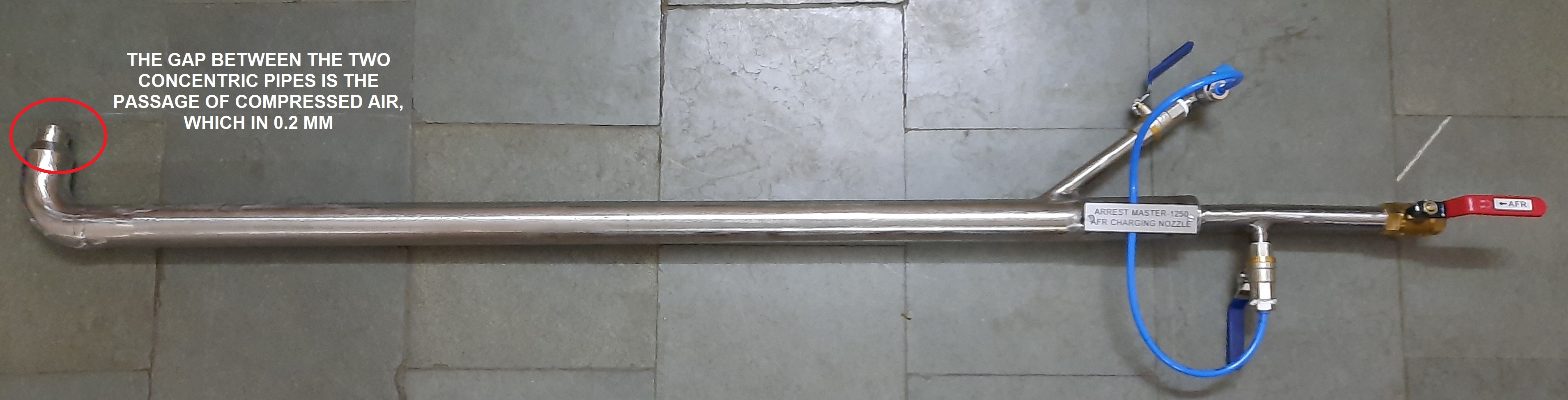

ARREST MASTER AFR 1250- V2.0
Length- 1250 mm, OD- 50 mm, ID- 16 mm
Compressed air passage orifice- 0.2 mm
Compressed Air requirement- Constant 5.5 - 6.0 Bar
Material of Construction SS-316
Pocking Hole size required to insert the nozzle- 160 mm
Flow- 0.2 to 3.0 KL/Hr
Variable spray length with bypass system to clean the nozzle.
By Atomization through compressed air, the uniform stream of atomized particles of AFR liquid burn effectively and CO % is reduced.
