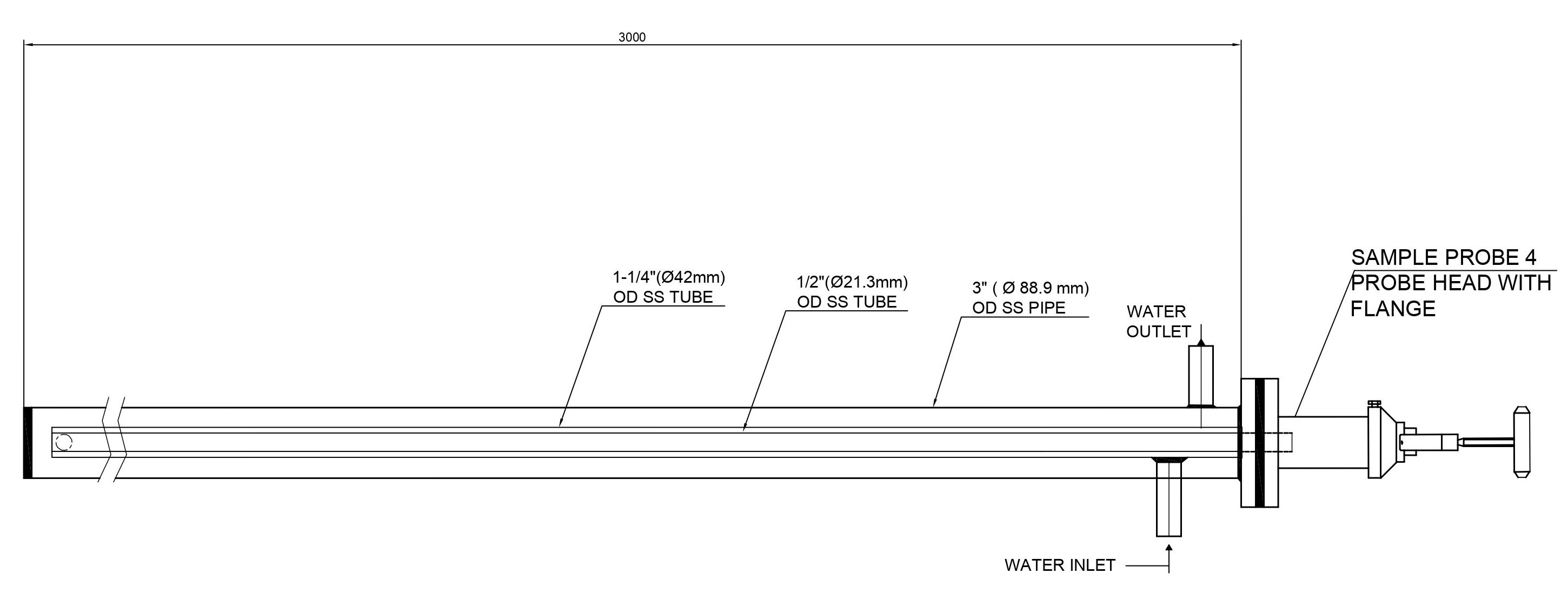

Water Cooled Gas Analyzer probe
The CUSTOMIZED Gas Analyzer probe is designed for the sampling of hot flue gases with a high dust load for gas analysis. Usage sites are the rotary kiln gas exit and the calciner gas exit in dry process clinker kilns. The probe is suitable for applications in rough & challenging environmental conditions.
Modified water-cooled single gas sampling probe 3500
Material SS 316, working Temp. 1300 Deg. C
Working Length: 3500 MM
With SS head Assy. (Filter Unit) & Ceramic Filter
Universal Outer Jacket 90 MM OD of 3500 MM Length with side opening two sample points with O-rings & Nozzles
Make & Design: Invotech Industrial Solutions Pvt. Ltd.
Water Cooled SINGLE Gas Sampling Probe 2000
Material SS 316, working Temp. 1300 Deg. C
Working Length: 2000 MM
With SS Head Assy. (Filter Unit) & Ceramic Filter
Universal Outer Jacket 90 MM OD of 2000 MM Length with side opening two sample points
with O rings & Nozzles, Applicable with PC Analyzer.
Make & Design: Invotech Industrial Solutions Pvt. Ltd.
