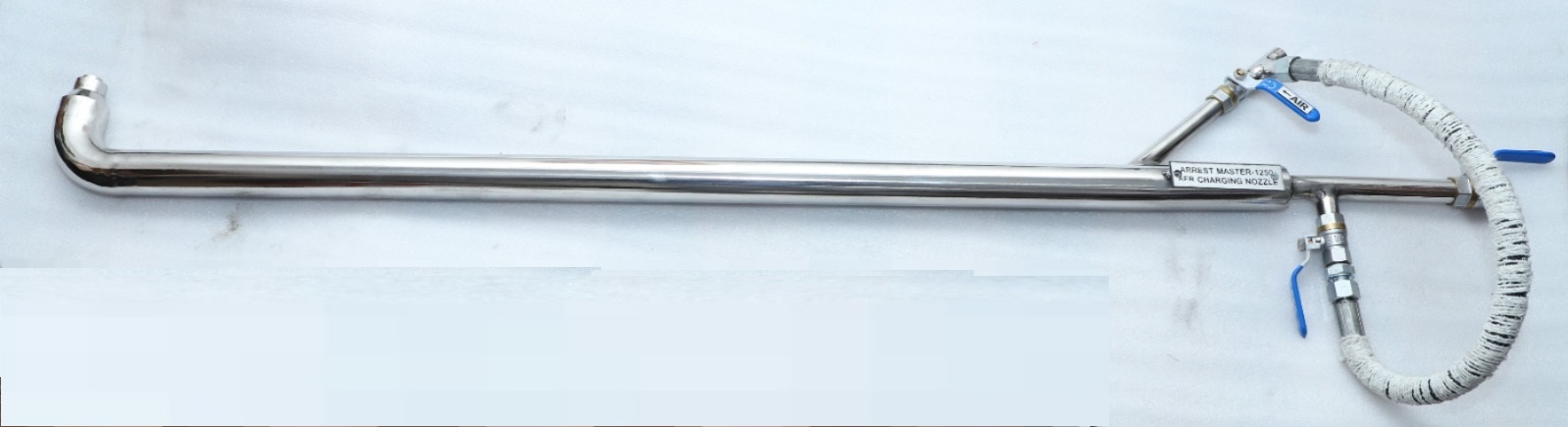

ARREST MASTER AFR 1250- V3.0
Arrest Master AFR 1250 V3.0 - AFR Charging Nozzle Properties:-
1) By Atomization through compressed air, the uniform stream of atomized particles of AFR liquid burns effectively and CO % is not generated.
2) Discharge- The flow rate can be controlled by the Control valve (0.2 to 4.0 KL/hr).
3) Very little compressed air consumption.
4) High-Quality Material Construction by SS-316.
5) Bypass System- A manual control valve is provided to clean the nozzle through compressed air in running condition.
6) Maintenance-free, as there are no moving parts.
7) Liquid AFR consumption per day can be increased by using multiple nozzles at once.
8) The length of the spray can be changed by the control valve provided.
1) By Atomization through compressed air, the uniform stream of atomized particles of AFR liquid burns effectively and CO % is not generated.
2) Discharge- The flow rate can be controlled by the Control valve (0.2 to 4.0 KL/hr).
3) Very little compressed air consumption.
4) High-Quality Material Construction by SS-316.
5) Bypass System- A manual control valve is provided to clean the nozzle through compressed air in running condition.
6) Maintenance-free, as there are no moving parts.
7) Liquid AFR consumption per day can be increased by using multiple nozzles at once.
8) The length of the spray can be changed by the control valve provided.
Improved Arrest Master AFR 1250 V3.0- Liquid AFR charging Nozzle Specifications:-
Length- 1250 mm, OD- 50 mm, ID- 20 mm, Nozzle end- Curvature 90 Degrees
Compressed air passage orifice- 0.2 mm
Compressed Air requirement- Constant 5.5 - 6.0 Bar
Material of Construction SS-316
Pocking Hole size required to insert the nozzle- 160 mm
